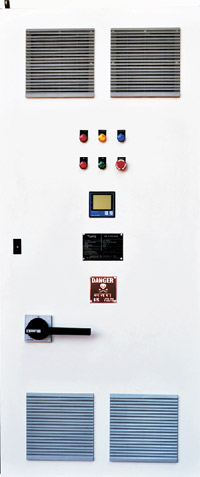

Passive Harmonic Filters |
 |
|
State-of-the-Art Passive Filter, that limits the harmonic distortion, meets IEEE 519 Standards and Improve the Power Factor. It protects Drives and Other Sensitive equipments andImprove Energy efficiency.
Harmonics and Power Quality :
 Transformer and Distribution Equipment Overheating
Random Breaker Tripping
Sensitive Equipment may fail Completely
Poor Power Factor
Reduced System Efficiency
Meets IEEE-519
Protects drives and other sensitive equipment
Improves energy efficiency
The HTS not only Limits the current distortion to less Than 8% (5 – 6 % Typical to 100% Load),
it also Corrects the Power Factor to 0.99 (Near Unity at100% load).
Eliminates nuisance tripping
Increases drive up time dramatically
Improves system efficiency and reliability and Extends equipment life
Remote monitoring and diagnosis.
User friendly PC interface |
|
 |
Benefits to Customer:
Safe and reliable AC electrical distribution systems
Nuisance tripping of protection circuit breakers avoided
Improved power quality
Reduction of the THD i
Increased lifetime of AC distribution system equipment
Over-sizing cables, transformers and other AC distribution equipment avoided
Compliance of installations with harmonic standards ensured
Improved power factor
Lower energy expenses/bills |
| |
|
|
|
 |
 |
 |
 |
|
| |
|
|
